Mini Pc Industrial + TCS 3330

Especificaciones técnicas

Ultra Small Form Factor, Ideal para la industria y comercio, Equipo de uso profesional, fanless, uso intensivo 24x7. Sin coolers (carcaza autodisipadora de aleación). Se caracteriza por tener 3 puertos de video y su alta resistencia.

+ Onboard CPU Intel Celeron Processor J3160/N3160(Quad-Core 2M Cache,1.6 GHz, up to 2.24 GHz)

+ Memory1 x DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz)

+ Chipset Intel Soc Chipset

+ Hard Disk1 x 2.5-inch HDD/SSD1 x Mini-PCIe for mSATA SSD

+ Onboard VGA Intel HD Graphics Onboard

+ LAN 2* Realtek RTL8111E Gigabit LAN

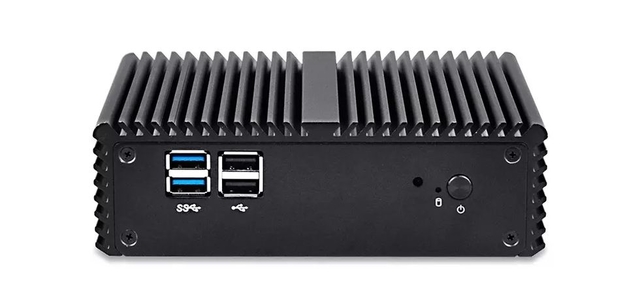

+ Front-Panel Connectors

    1 x Power Button

    1 x Power LED

    2 x USB 3.0

    2 x USB 2.0

    1 x IR (Optional)

    Expansion • 1 x Full Length Mini-PCIe for SSD1 x Mini-PCIe for option (Full-length for 3G, or Half-length for WiFi module by default)

    1 x SIM Card Slot

    1 x Automatically Boot Jumper

    1 x 2.0 Pitch Header for VGA (Optional)

    1 x 2.0 Pitch Header for GPIO (Optional)

    1 x DC-in Header (Optional)

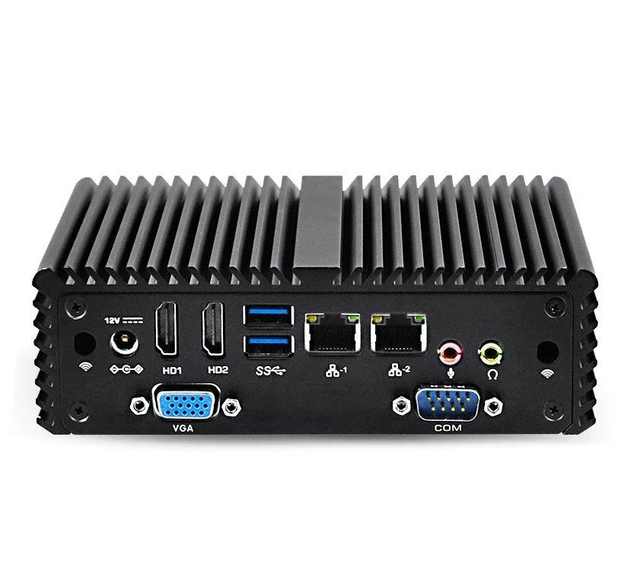

+ Back-Panel Connectors

   1 x 12V/5A DC Power Jack

   2 x HDMI

   1 x VGA

   2 x USB3.0

   2 x RJ-45 Port for Gigabit LAN

   2 x Audio (Line-out & Mic-in)

   1 x COM (RS232)

+ Dimension156*127*48mm (L*H*W)

+ Weight 2Kg (Reference)

+ Operating System Support Win7 /8 / Win10 /Linux etc.
