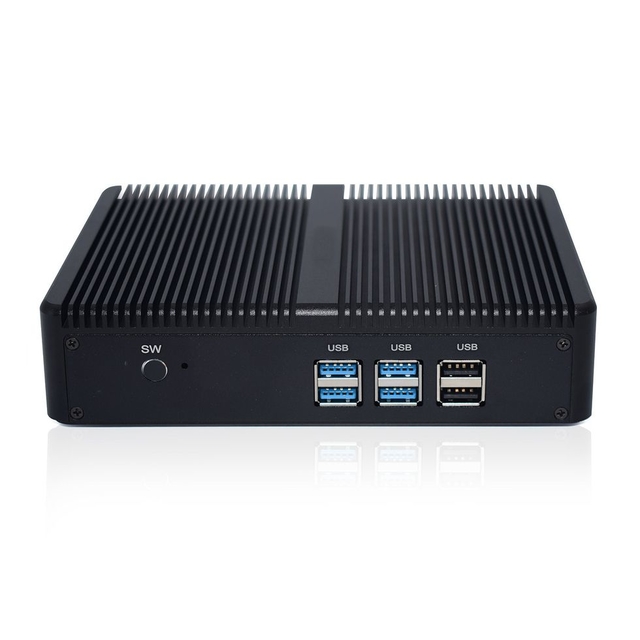

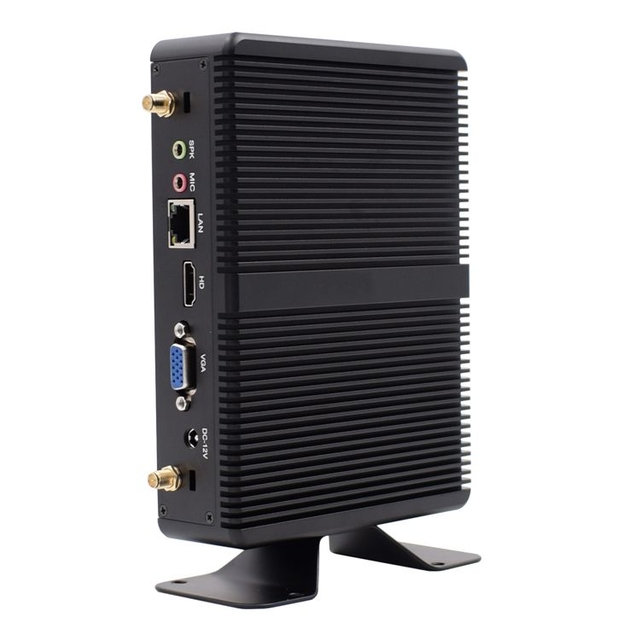

Mini Pc Industrial + TCS 3550

TCS 3550, una solución ideal para la industria. Construido en aleación de aluminio, resistente y totalmente Fanless, sin coolers ni partes móviles internas, hacen del dispositivo una solución confiable en ambientes agresivos. Con procesadores opcionales Core I3 e I5, lo que hace al equipo una solución configurable, respondiendo a altos requerimientos procesamiento.

Especificaciones Técnicas

+ CPU Intel Core i3-7167u / Intel Core i5-7267u

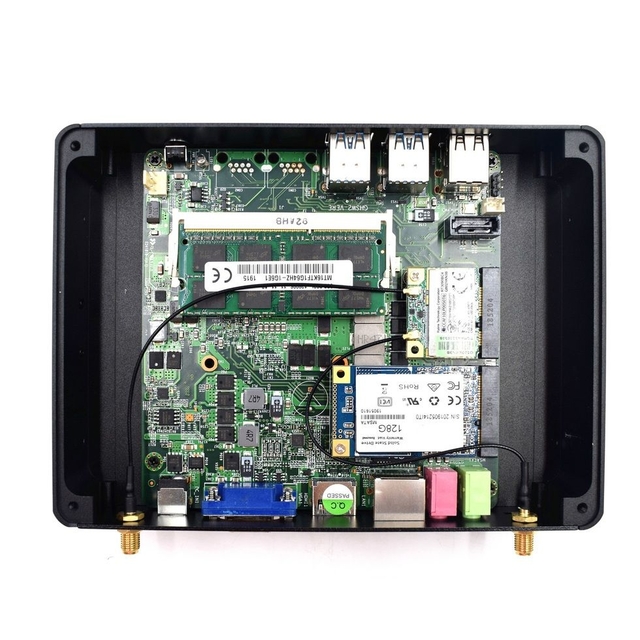

+ Motherboard 120 x 120mm customized size

+ BOIS AMI BIOS, ACPI Supported

+ Chipset Intel KABYLAKE

+ Memory1 x SO-DIMM DDR4 Slot Support 2GB/4GB/8GB/16GB DDR4-2133, DDR4-2400

+ OS Windows 7 /Windows 8 / Windows 10 /Linux

+ PXE (LAN BOOT) YES

+ Audio ALC662 sound chip, 6-channel Intel Panther Point HDA

+ Network Onboard Realtek RTL8168 / 8111 / 8112 PCI-E Gigabit Ethernet NIC 10/100Mbps/1000Mbps BaseT

+ Video Intel® HD Graphics 620

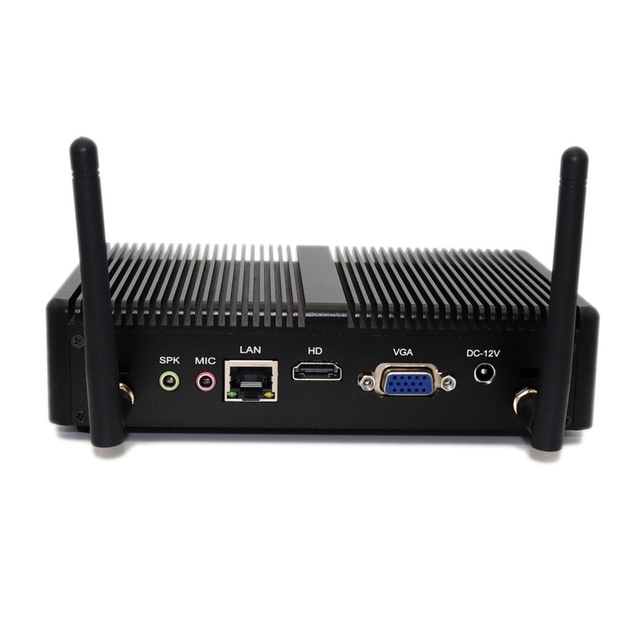

+ Input / output port

   -Switch 1 x Power On/Off

   -Switch Power 1 x 12V DC 5A In

   -LED 2 x LED

   -USB 2 x USB 2.0, 4 x USB3.0

   -Display 1 x VGA, 1 x HDMI

   -LAN1 x RJ45 Giga LAN

   -Audio1 x MIC, 1 x SPK

   -Others 2 x Kensington Lock holes

   -Storage MSATA1 x M-SATA 3.0 slot for MSATA SSD, support 6Gb/sSATA1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

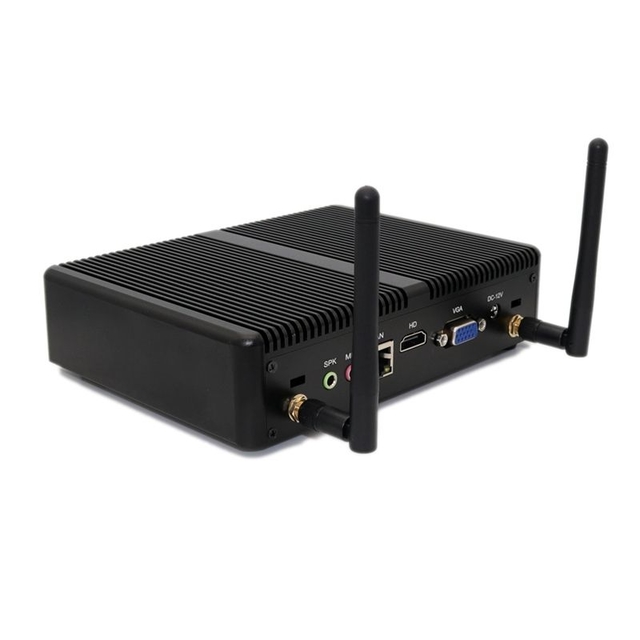

   -Wi-Fi Module1 x mini PCIE-half port for Wi-Fi module Antenna 2 x inner RF cables or external antennas

+ Power Input DC100-240V AC/50-60Hz OutputDC +12V~+19V, recommend 12V/5A

+ Working Environment Operating Temperature 0/+70 Centigrade

+ Storage Temperature -20/+85 Centigrade

+ Relative Humidity 0%~90% (non-condensing)

+ Product Dimension & Details

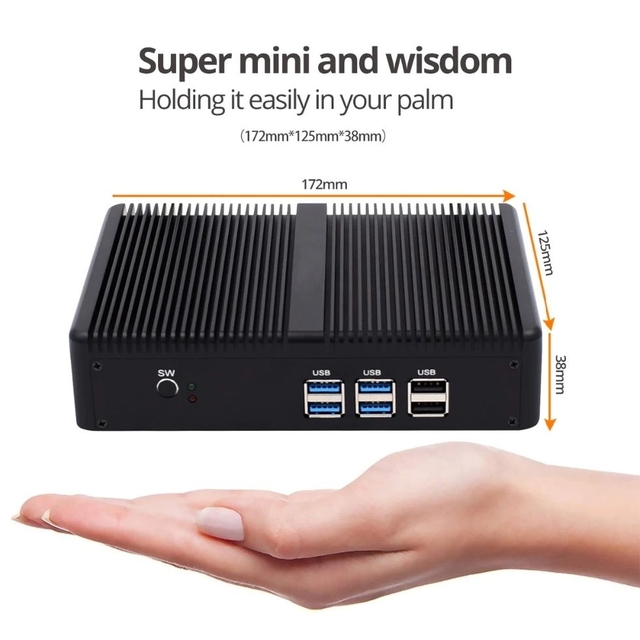

   -Size 173*127*39mm

   -Weight Net 0.8kg, Gross 1.2kg

   -Shell Silver/Blue/Black color aluminum alloy (any customized color for bulk order)

   -Cooling Mode Fanless FunctionsCalls on function automatically, Wake-On-LAN, Kensington Lock

   -Package Content Standard 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xBracket Optional Wi-Fi antennas, 1xVESA mount
