Especificaciones Técnicas
+ ProcessorSkylake/Kaby lake-Ui3-6100/i5-6200/7200u//i7-6500u/7500u serial CPU
+ ChipsetSkylake/Kaby lake-U single chipset
+ Ram socket Onboard 2G\4G\8G Ram, can add one Ram socket , max support 16gb Ram
+ Lanonboard 2* Gigabit Ethernet?1*Intel I219 and 1*Intel I211?
+ Audioonboard HDA ALC662 Storage equipment
+ 1*SATA3.0 1*onboard SSD 1*Mini-SATA 2* Mini PCIE SLOT
+ Color sliver

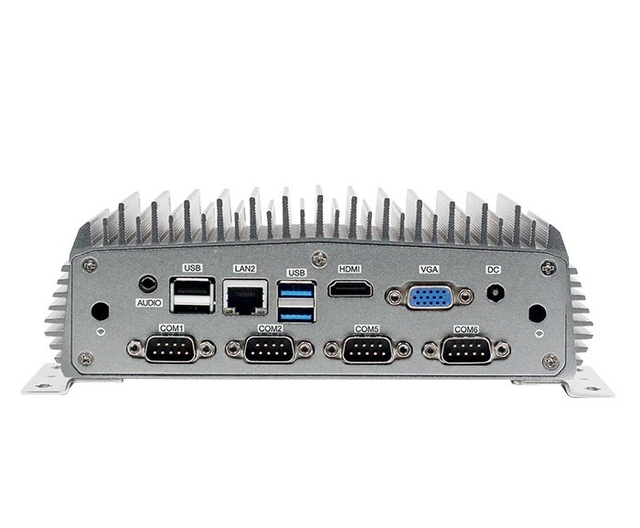

+ Rear panel interface1*LAN 1*HDMI 1*VGA 4*COM(RS232) 4*USB2.0 2*USB3.0 1*DC 1*LINE-OUT 2*WIFI antenna
+ Front panel interface1* fast switch button 1* power indicator 1* hard disk indicator +4*USB2.0 1*COM (RS2320 1*COM (RS422/485 Phoenix terminal interface)
+1*GPIO Operate systemSkylake
+Support Windows7 Windows10 linux Kaby lake support Windows10 Linux
+ Size209.4*122.5*70.6mm
