Mini Pc Industrial + TCS 4850

TCS 4850, una solución ideal para la industria. Construido en aleación de aluminio, resistente y totalmente Fanless, sin coolers ni partes móviles internas, hacen del dispositivo una solución confiable en ambientes agresivos. Con procesadores opcionales Core I3 i5 e I7, lo que hace al equipo una solución configurable, respondiendo a altos requerimientos procesamiento. Lo caracterizan Puertos MULTIPLES lan, con GPIO y posibilidad de seto RS232/422/485 por bios y puerto LPT.

Especificaciones Técnicas

+ CPU Onboard Intel Core i5 4200U 1.6GHz Max 2.6GHz (Turbo boost Technology) Dual Cores 4 threads - Optional Intel® Core™ i7-4500U Processor (4M Cache, up to 3.00 GHz)

+ Motherboard size190mm x 150 mm customized size BIOS American Megatrends Inc.

+ Memory1* SO-DIMM DDR3L 1333/1600 Slot,max. 8G Storage

+ 1*MSATA SSD  & 1*SATA HDD

+ Operating SystemWindows 7/Windows 8/Windows 10/Linux

+ Audio ALC662 sound chip, 6-channelIntel Lynx Point-LP HD Audio

+ Controller Network Onboard 2* Intel i213 Gigabit LAN

+ Video Intel HD Graphics 4400

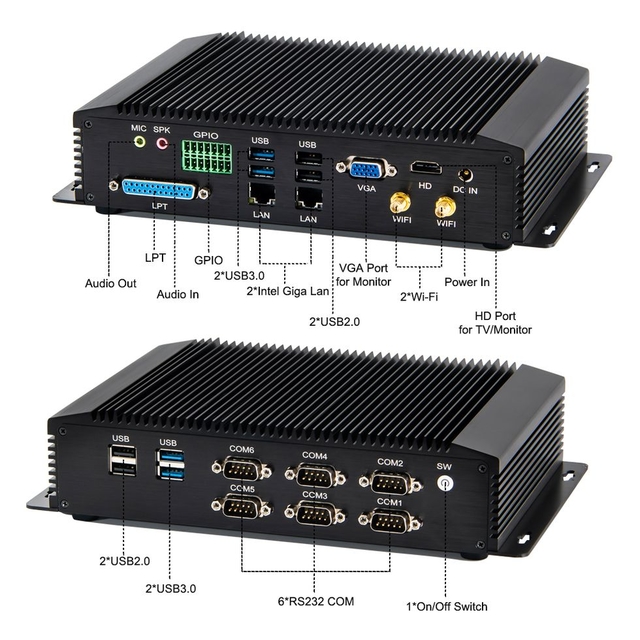

   I/O port front panel ports

+ 2 x USB 2.0, 2 x USB 3.0

+ 6 x COM,

+ 1* Switch Backside ports

+ 1*LPT (optional request)

+ 1*MIC + 1*SPK

+1*GPIO,

+ 2xUSB 3.0, 2 * USB 2.0

+ 2x LAN

+ 1x HD 1x VGA

+ 1*DC IN, 2 x Wi-Fi

+ COM 6*COM  (COM1 and COM2 can change to RS232/422/485 from BIOS)

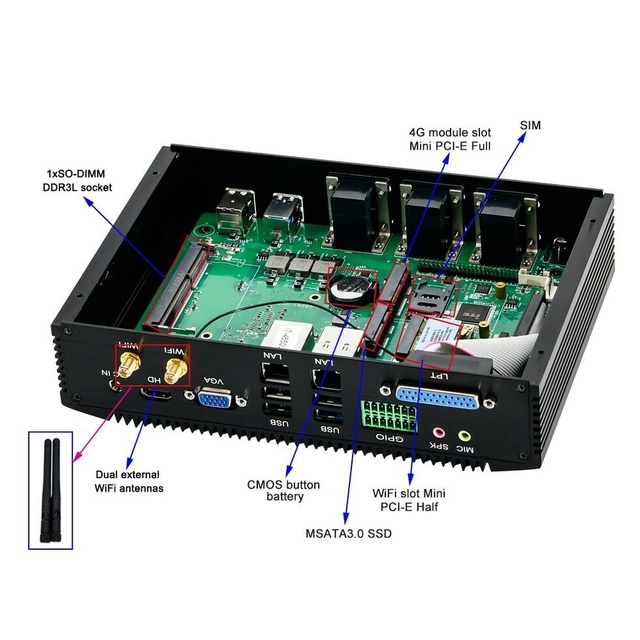

  Internal ports

+ 1 *M-SATA 3.0 port

+ support 6Gb/s1*SATA3.0 port

+ support 6Gb/s1*mini PCIE-half port for WiFi module

+ 1*mini PCIE-full port for 4G module SIM slot Embedded SIM Card slot onboard

 Power and Working Environment

+ InputDC100-240V AC/50-60Hz Output DC +12V~+19V, recommend 12V/5A

+ Operating Temperature-10/+60 Centigrade (32°F~140°F)

+ Operating Humidity10%~90%

+ Storage Temperature-20/+80 Centigrade (-68°F~176°F)

+ Storage Humidity 5%~95% (non-condensing)

+ Relative Humidity10%~90% (non-condensing)

  Product Dimension & Details

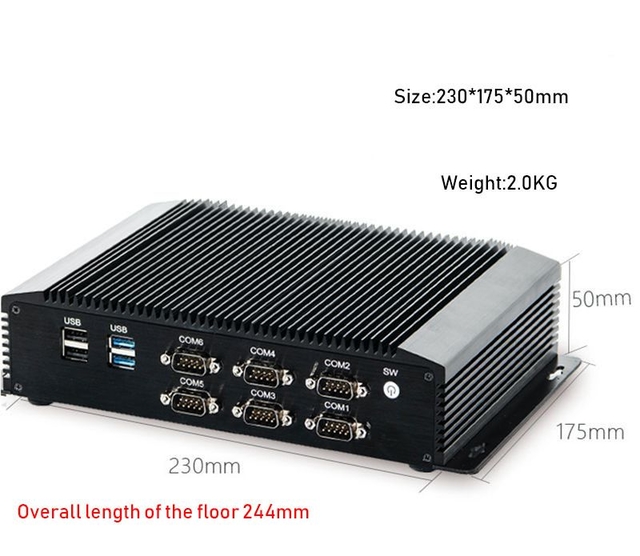

+ Size 230 * 175 * 50mm

+ Net Weight 1.25KG

+ Gross Weight 2.0KG

+ Consumption 15W

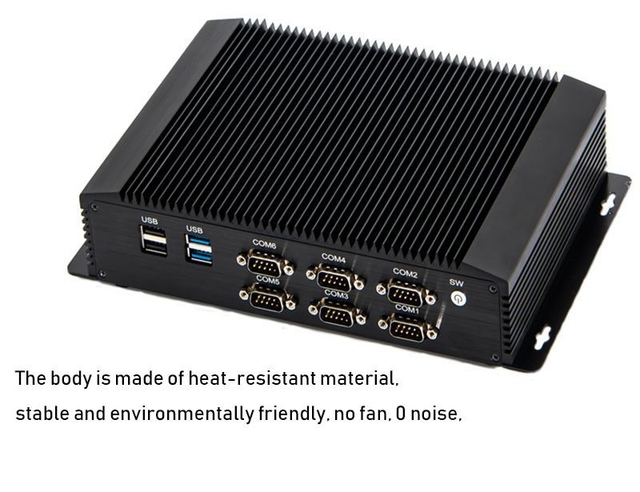

+ Shell Black color fanless aluminum alloy

+ Package Content Mini PC device, power adapter, dual WiFi antennas(optional), Screw Bag
