Especificaciónes técnicas
CPU: Intel Celeron J6426 / N100 (optional)
TDP : 10W
Level 2 Cache: 4 MB, 16-Way, 64 byte lines
BIOS: American Megatrends Inc.
Motherboard Size: 12 x 12 cm
PXE: YES
Chipset: Intel Gemini Lake
Memory: 1 x SO-DIMM DDR4 Slot Support 4GB/8GB DDR4/LPDDR4 upto 2400 MT/s
OS: Windows IOT/Windows 11/Windows 10/Linux, WES 10
Watchdog: Watch Dog Time 256 Levels, programmable
Audio: Intel High Definition Audio Controller
Network: 2 x RTL8168/8111/8112 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN
Video: Intel UHD Graphics

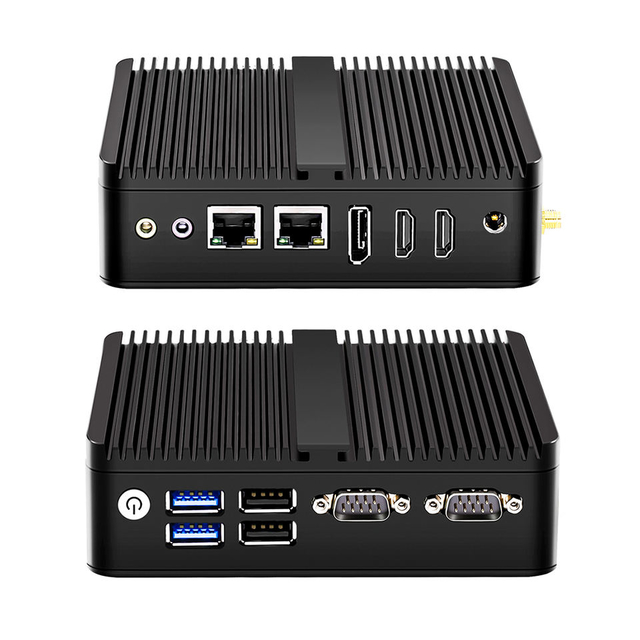

Input/output port
Switch: 1 x Power On/Off Switch
Power: 1 x 12V DC In
LED: 2 x LED

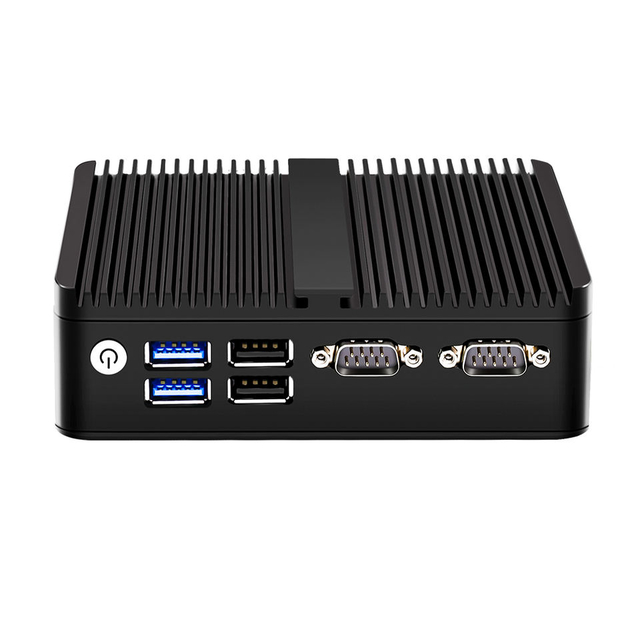

USB: 2 x USB3.0, 2 x USB2.0

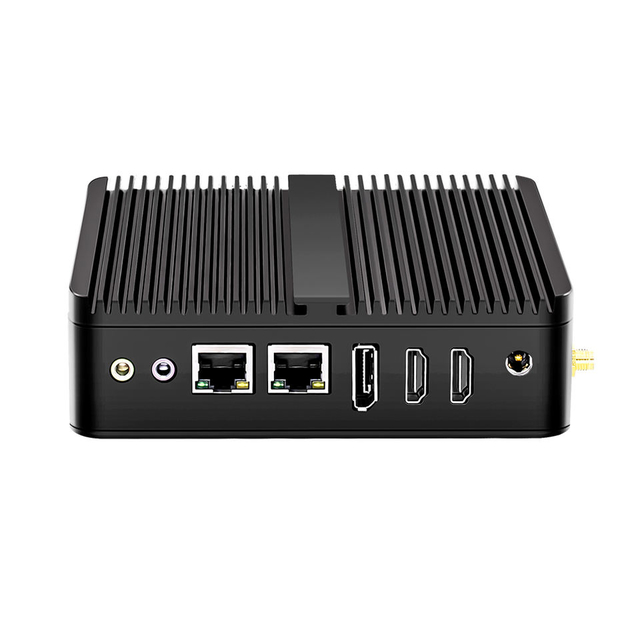

Display: 2 x HDMI, 1 x DP
LAN: 2 x RJ45 Giga LAN
Audio: 1 x Audio(MIC&SPK)
COM: 2 x RS232 COM

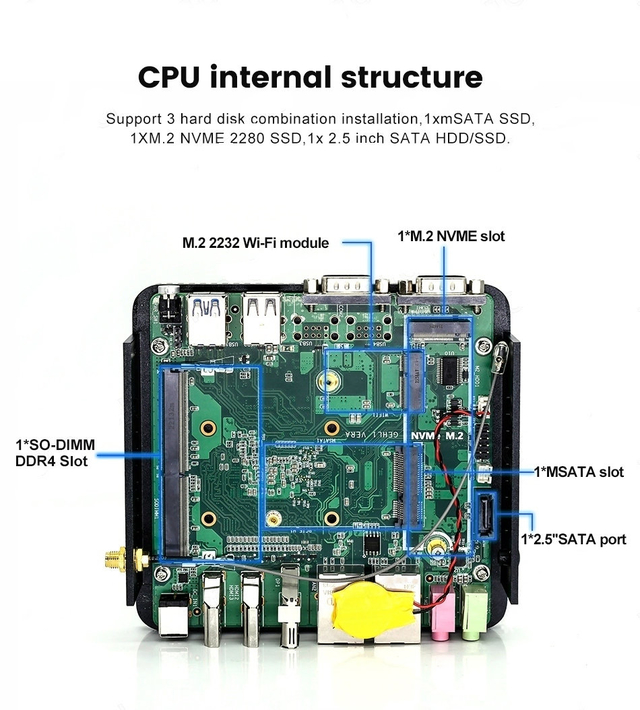

Storage
MSATA: 1 x MSATA3.0 slot for MSATA SSD, support 6Gb/s
M.2: 1 x M.2 slot for nvme SSD, support 6Gb/s
SATA: 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
WiFi
Module: 1 x mini PCIE-half port for WiFi module
Antenna: 2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input: DC100-240V AC/50-60Hz
Output: DC 12V/5A
Operating Temperature: -10/+60 Centigrade
Storage Temperature: -20/+85 Centigrade
Relative Humidity: 10%~90% (non-condensing)

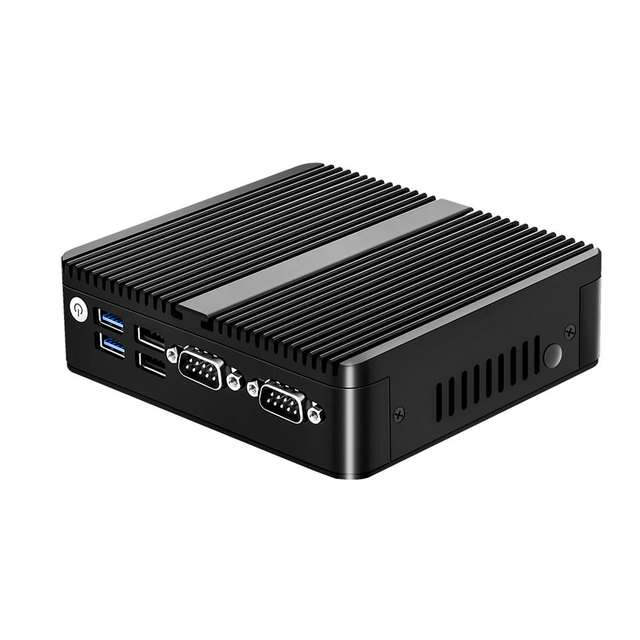

Product Dimension & Details
Function: Auto Power On, RTC, WOL, PXE

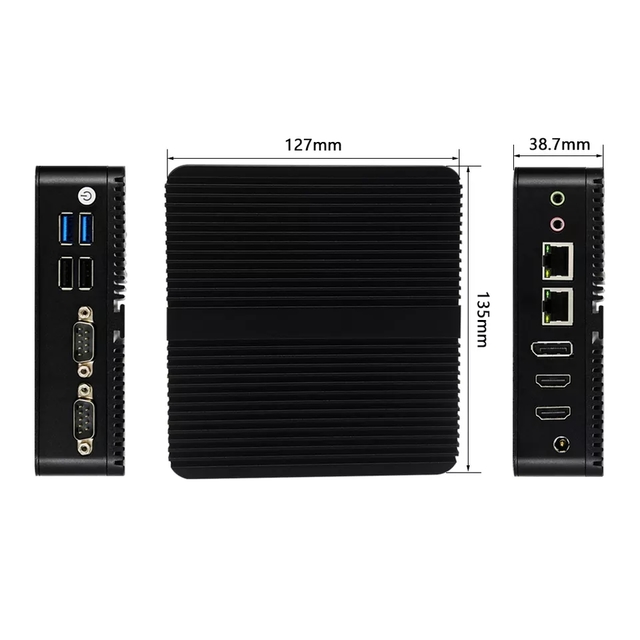

Size: 135*127*39mm(44mm with foot pad)
Weight: Net 0.55kg, Gross 1.2kg
Shell: Black color aluminum alloy
Cooling Mode: Fanless
Package Content
1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag,

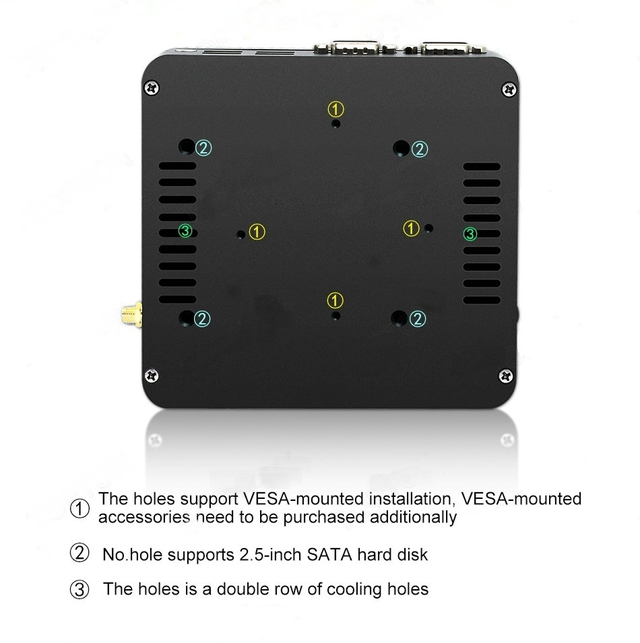

WiFi module & antennas VESA Mount
