TCS 6930, de Ultra Small Form Factor, Ideal para la industria y comercio, lo caracterizan el tener 2 puertos lan y 6 puertos RS232.(4 a 422/485), puerto GPIO. 24x7 uso profesional.
Especificaciones
Fanless system without cooling fan, no any noise, thicker and longer heat-sink fins for working as long as 7x24 hours durably. - Brushed Full Aluminum Alloy Silver/Black color shell for heat dissipation, Exquisite production craft on outside design.

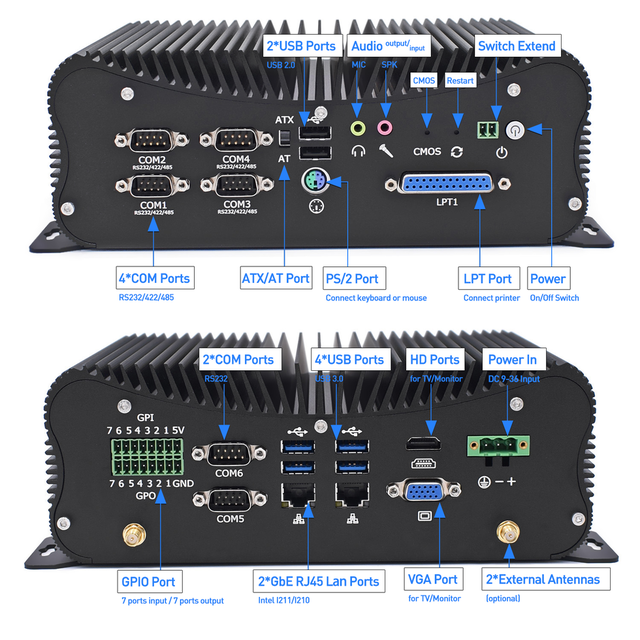

+ 2xIntel i201/i211 Gigabit RJ45 LANs,
+ 6xDB9 COM (4xRS232/422/485)
+ 8xUSB(2xUSB inside),
+ PS/2, GPIO and LPT rich ports for different equipments.

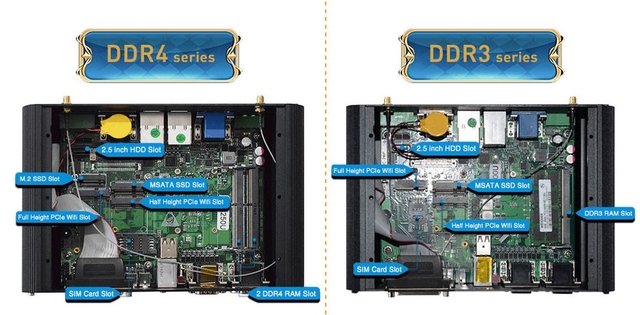

+ 3 x Storage: 1*MSATA SSD+1*M.2 NVME SSD+1*2.5''SATA installation together;
+ Fit for 9-36V 3pin phoenix terminal power input, ATX/AT quick switch.
+ Support VGA + HDMI dual display output synchronously.
+ One embedded SIM card slot onboard and 2*Mini PCI-E slot for 3G/4G & Wi-Fi.
+ Support Watchdog, AWAL, RTC, WOL(ATX mode), PXE, Reset functions.
+ Low consumption TDP only 10W and can be mounted on the wall.
+ Industrial Fanless Mini Computer Processors options:
Core i3 7167U: 14nm CPU Kaby Lake 2.8GHz ,2 Core 4 thread Intel Iris Plus Graphics 650 300MHz-1.05GHz
Core i5 7267U: 14nm CPU Kaby Lake 3.1-3.9GHz ,2 Core 4 thread Intel Iris Plus Graphics 650 300MHz-1.05GHz
Core i5 8250U: 14nm CPU Kaby Lake R 1.6-3.4GHz ,4 Core 8 thread intel UHD Graphics 620 300MHz-1.10GHz
Core i5 4200U: 22nm CPU Kaby Lake 1.6-2.6GHz ,2 Core 4 thread Intel HD Graphics 4400 200MHz-1.0GHz
Core i7 4500U: 22nm CPU Kaby Lake R 1.8-3.0GHz ,2 Core 4 thread intel HD Graphics 4400 200MHz-1.10GHzBasic
Information:
CPUIntel Core i5 4200U/I7 4500U/i5 7267U/i5 8250U/I3 7167UTDP15W MemoryCore I3 7167U/ i5 7267U/8250U support 2xSODIMM DDR4-2133/2400/2666MHz memory slot up to 64GB
Core i5 4200U/i7 4500U support 1xSODIMM DDR3L-1333/1600MHz memory slot up to 8GB
+ OSWin-7/10/Linux, WES 7/10 PXE YES
+ Audio Intel High Definition Audio Controller
+ Network2 x Onboard Intel i211/210 Gigabit Ethernet Controller 10/100Mbps/1000Mbps BaseT LAN
+ Video Intel HD Graphics Input/output port
+ USB 2 x USB2.0, 4 x USB 3.0,internal 2 x USB2.0
+ COM 6 x DB9 Serial Port (4 of them support RS422/485)
+ Display1 x VGA, 1 x HDMI, support 4K HD
+ LAN2 x RJ45 Giga LAN
+ GPIO14 GPIO port, 7 output, 7 input
+ LPT1x LPT port
+ Power1 x 3 Pin phoenix terminal DC 9-36V input Switch
+ 1 x Power On/Off Switch Reset One key reset hole
+ Audio1 x MIC, 1 x SPK
+ Storage M.2 1 x M.2 slot for NGFF/NVMe/PCIe SSD 32Gb/s(only core i5 7267U/8250U )
+ MSATA1 x MSATA3.0 slot for MSATA SSDSATA1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s(no space to install) Wi-Fi Module1 x Mini PCI-E Slot for Wi-Fi module
+ Antenna2 x inner RF cables and without external antenna
+Power and Working Environment Input DC100-240V AC/50-60Hz OutputDC +9V~+36V, recommend 12V/5A
+ Operating Temperature-30/70 Centigrade Relative Humidity10%~90%
+ Product Dimension & Details Dimension 249*150*86mm
+ Weight Net 2.3kg, Gross 3.5kg
+ Cooling Mode Fanless design, Alluminum alloy case.
+ Functions AWAL, PXE, Wake On LAN, RTC

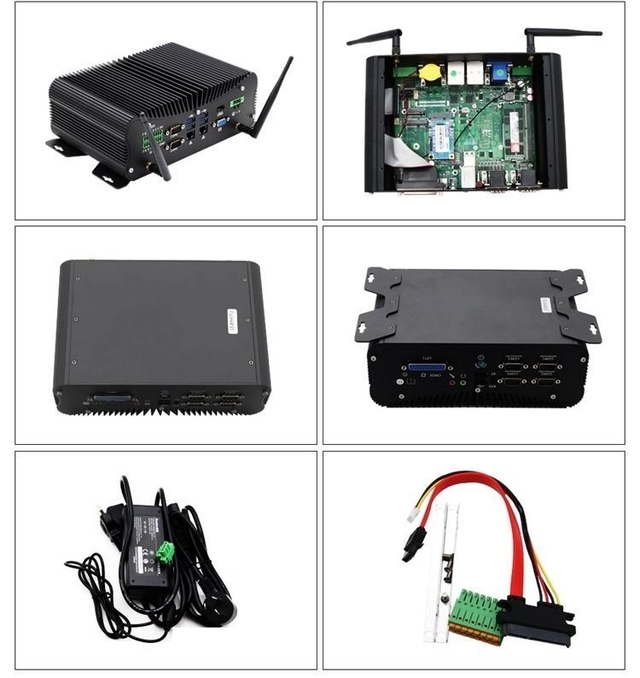

+ Package Content Standard 1xMini PC, 1 x Power Adapter, 4xMount Screws
