Especificaciones Técnicas:
i5-1235U
CPU: Onboard Products formerly Alder Lake
7nm Intel Core i5-1235U 4.4GHz Max Turbo
Frequency 10 Core 12 Threads 12M cache TDP 15W Intel® Iris® Xe Graphics eligible.
i7-1255U
CPU: Onboard Products formerly Alder Lake
7nm Intel Core i7-1255U 4.7GHz Max Turbo
Frequency 10 Core 12 Threads 12M cache TDP
15W Intel® Iris® Xe Graphics eligible.
Product Highlight
- Brushed Full Aluminum Alloy Black color shell, Exquisite production craft on outside design.
- Fanless system without cooling fan, no any noise, work as long as 24 hours.
- Built-in Wi-Fi or Bluetooth with dual external antennas for option.
- Low consumption TDP only 15W, save much energy and eco-friendly.
- Can install M.2 Nvme/NGFF 2280 SSD, 2.5 inch SSD/HDD.
- Support HDMI 2.0*2+DP1.4*1+TYPE-C 4 display output synchronously.
Basic Information
CPU: Onboard Intel Core i5-1235U/ i7-1255U
TDP: 15W
BOIS: AMI BIOS, ACPI supported
Chipset: Intel Alder Lake
Memory: 2 x SO-DIMM DDR4
Support up to 64GB
OS: Windows 10/Windows 11/Linux
PXE: YES
Audio: Intel(R) display audio @ Intel Panther Point High Definition
Network: Onboard 2500Mbps Intel i225/i226*2
Video: Intel® Iris® Xe Graphics eligible
Input/output port
Switch: 1 x Power On/Off Switch
Power: 1 x 19V DC In
LED: 2 x LED
USB: 2 x USB2.0, 4 x USB3.0
Display: 2 x HDMI2.0, 1 x DP1.4, 1 x TYPE-C
LAN: 2 x RJ45 Giga LAN
Audio: 1 x MIC, 1 x SPK
Storage
M.2 SSD: 1*M.2 NVME/NGFF 2280 SSD, 1*M.2 NVME 2280 SSD
SATA: 1 x 2.5 inch SATA HDD or SSD
Wi-Fi
Module: 1 x M.2 2230 for Wi-Fi module
Antenna: 2 x inner RF cables and 2 x external antennas

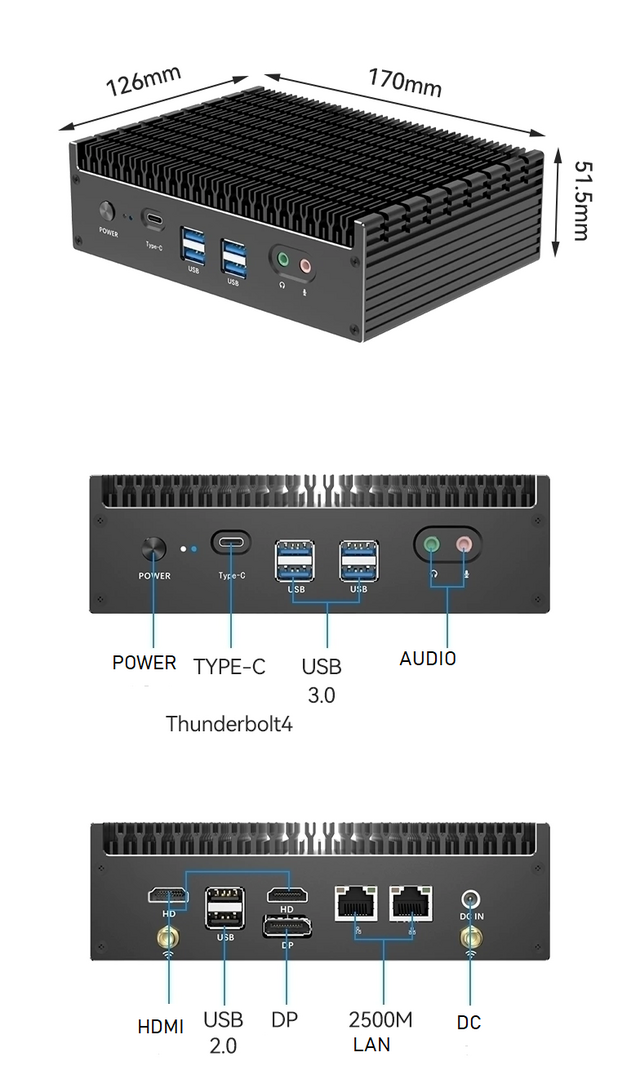

Product Dimension & Details
Size: 170*126*51.5mm
Weight: Net 1.0kg, Gross 1.5kg
Shell: Black color aluminum alloy

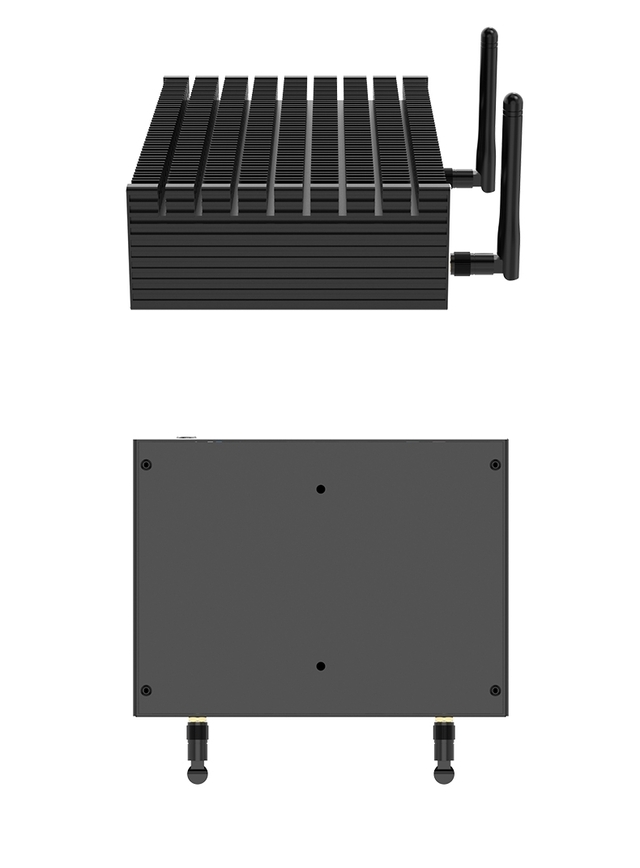

Mounting: 4 Mounting holes on case
Cooling Mode: Fanless
Functions: Calls on function automatically, Wake-On-LAN
Power and Working Environment
Input: DC 100-240V AC/50-60Hz
Output: DC +19V, recommend 19V/3.42A
Operating Temperature: 0/+70 Centigrade
Storage Temperature: -20/+85 Centigrade
Relative Humidity: 0%~90% (non-condensing)

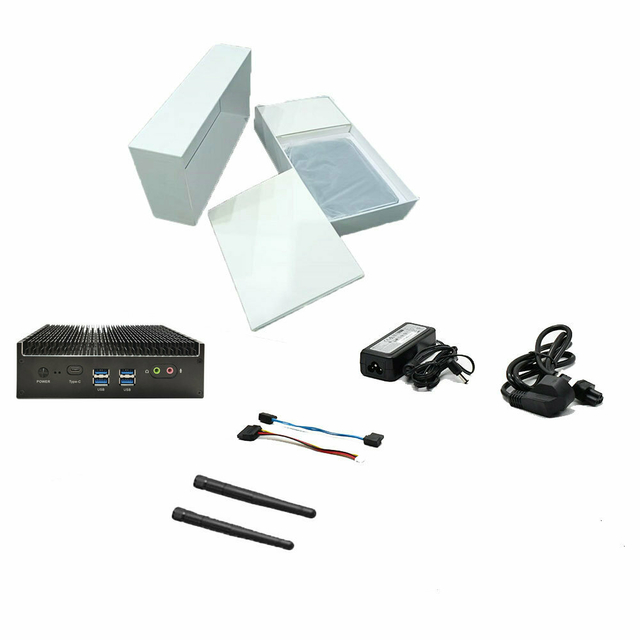

Package Content
Standard: 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag
Optional: Wi-Fi antennas, 1xLong Screws Bag
