TCS 9455, una mini pc que se caracteriza por poder ser solicitada con varios tipos de procesadores potentes, según su necesidad:
Especificaciónes Técnicas
Information Básica:

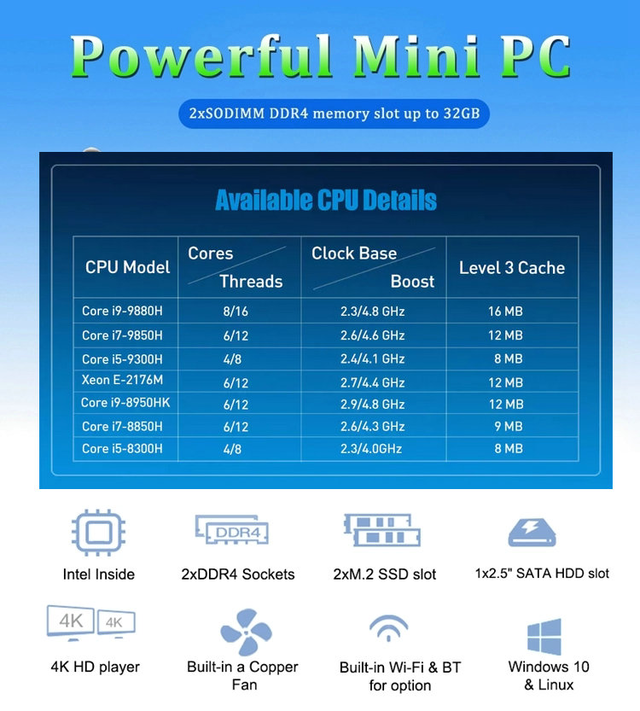

+ CPU Intel Core I5/I7/I9/Xeon Series CPU:
This model support:
1. 9th Gen 14nm CPU Coffee Lake Intel Core i5 9300H 4 cores 8 threads 2.4GHz up to 4.1GHz 8MB cache TDP 45W UHD Graphics 630
2. 9th Gen 14nm CPU Coffee Lake Intel Core i7 9850H 6 cores 12 threads 2.6GHz up to 4.6GHz 12MB cache TDP 45W UHD Graphics 630
3. 9th Gen 14nm CPU Coffee Lake Intel Core i9 9880H 8 cores 16 threads 2.3GHz up to 4.8GHz 16MB cache TDP 45W UHD Graphics 630
4. 8th Gen 14nm CPU Coffee Lake Intel Xeon E-2176M 6 cores 12 threads 2.7GHz up to 4.4GHz 12MB cache TDP 45W UHD Graphics P630
5. 8th Gen 14nm CPU Coffee Lake Intel Xeon E-2186M 6 cores 12 threads 2.9GHz up to 4.8GHz 12MB cache TDP 45W UHD Graphics P630
6. 8th Gen 14nm CPU Coffee Lake Intel Core i7 8750H 6 cores 12 threads 2.2GHz up to 4.1GHz 9MB cache TDP 45W Intel® UHD Graphics 630
7. 8th Gen 14nm CPU Coffee Lake Intel Core i5 8300H 4 cores 8 threads 2.3GHz up to 4.0GHz 8MB cache TDP 45W Intel® UHD Graphics 630
8.6th Gen 14nm Skylake Intel Xeon E3-1505M v5 4 cores 8 threads 2.8GHz up to 3.7GHz 8MB cache TDP 45W Intelreg HD Graphics P530
9.6th Gen 14nm CPU Skylake Intel Core i5 6585R 4 cores 4 threads 2.8GHz up to 3.6GHz 6MB cache TDP 65W Intelreg Iris Pro Graphics 580
(los procesadores siempre pueden cambiar por versiones superiores disponibles de mercado)
+ Motherboard Size120 x 120mm
+ Platform Intel Coffee Lake Chipset Intel 100 series PCH
+ Memory2 x SO-DDR4 SDRAM Slot, up to 64GB (2x32G) Dual Channel, DDR4 2133/2400/2666 260pin
(P.S: E3-1505M V5 /i5-6585R/I7-6785R only support Dual DDR3L memory slot)
+ OS Windows / Linux
+ PXE Yes Audio Azalia Codec support 2.1 channel output
+ High Definition Audio Controller Network Onboard RTL8111 PCI-E Gigabit Ethernet NIC10/100/1000 BaseT LANVideo
+ intel® UHD Graphics 630

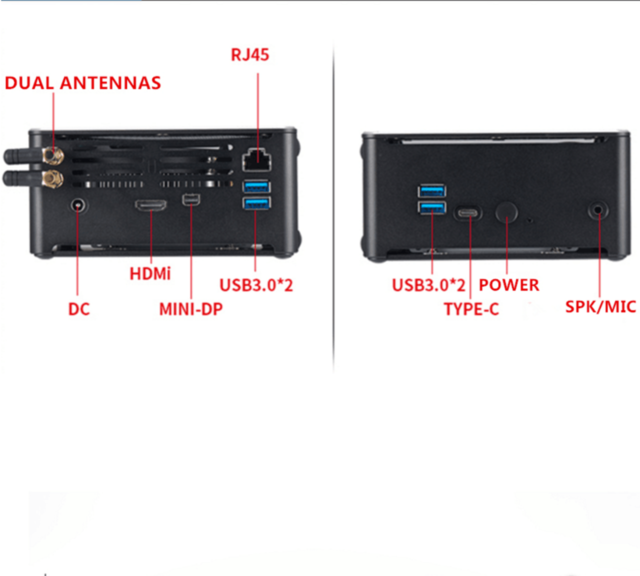

+ Input/output port Switch
1 x Power On/Off Switch Power1 x 19V DC In
USB 4 x USB3.0 +1 USB-C1 x Type-C USB
+ Display 1 x Mini-DP, 1 x HDMI
+ LAN1 x RJ45 Giga LAN
+ Audio1 x Audio (MIC&SPK)
+ 1 x Kensington Lock hole

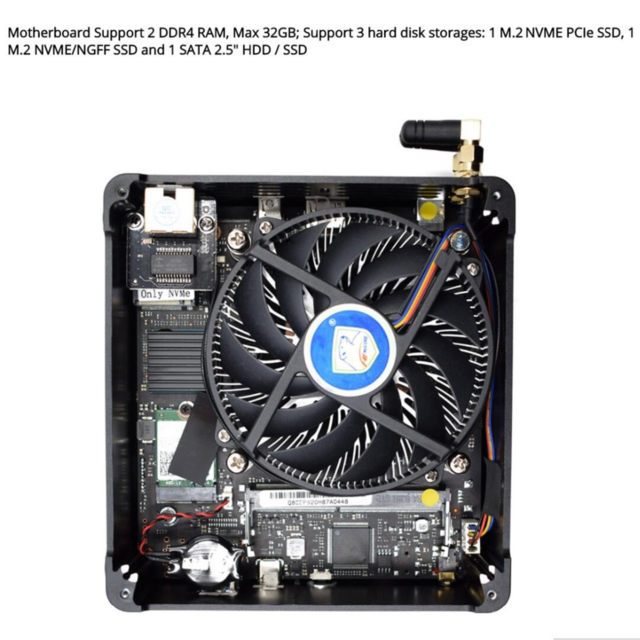

+ Storage:
MSATA 1 x M.2 slot for M.2 NGFF 22*80, up to 2TB (Only NVME), support 6Gb/s 1 x M.2 slot for M.2 NGFF 22*80, up to 2TB (NGFF/NVME), support 6Gb/s
SATA1 x SATA3.0 slot for 9.5mm SATA HDD or SSD, up to 3TB, support 6Gb/s
+ Wi-Fi Module 1 x M.2 NGFF 2230 slot for Wi-Fi module Antenna 2 x inner RF cables and 2 x external antennas
+ Power and Working Environment Input DC100-240V AC/50-60Hz Output DC +12V~+19V, recommend 19V/3~5A
+ Operating Temperature 0/70 Centigrade
+ Storage Temperature-20/+80 Centigrade Relative
+ Humidity 0%~90% (non-condensing)
+ Product Dimension & Details

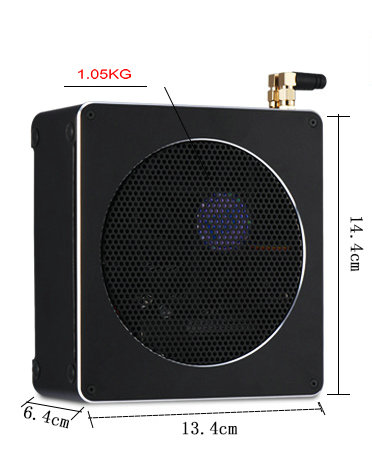

+ Size 134*144*64mm
+ Weight Net 1.05kg, Gross 3.0kg Shell Brushed Black color aluminum alloy, a film covered on surface
+ Cooling Mode Cooling Fan Functions
+ Support PXE, AWAL, RTC Package Content Standard

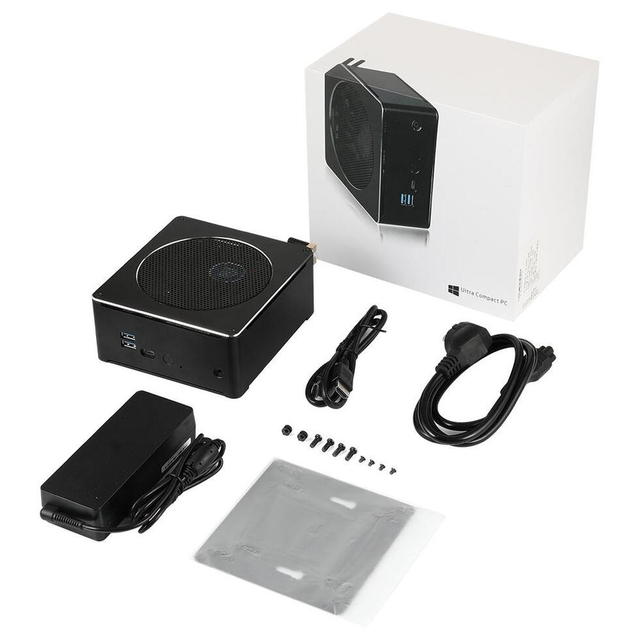

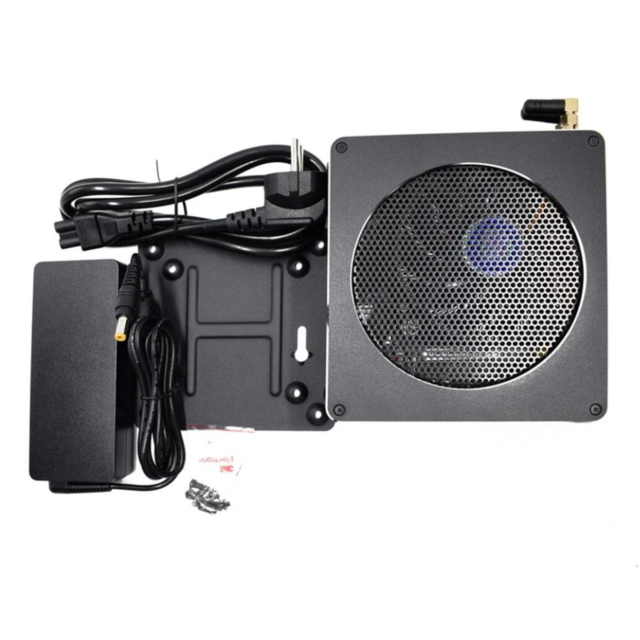

+ 1xMini PC, 1 x Power Adapter, 1 x Power Cord, 1x Screws Bag, 1xMini-DP to VGA adapter, 1xVESA mount
Wi-Fi antennas
