TCS 6560, un dispositivo que responde a altas exigencias en el área industrial. Construido con carcaza de aleación de alumino, resistente al polvo, totalmente Fanless, y con amplias posibilidades de conectividad, entre las que se destacan: Dual Lan, 6 puertos Com, y GPIO.
Especificaciones Técnicas
+ CPU Onboard Intel Core I5/i7 optional
+ TDP 28W
+ Memory DDR4 RAM, Dual Memory Slots up to 64G
+ Storage: mSATA SSD and Optional 1 x 2.5inch SATA HDD
+ Operating System supported Win11/Win10/Linux
+ GPU Intel Iris Xe Graphics
I/O
+ 1 x Power On/Off Switch
+ 1 x 12V DC Jack
+ 4 x USB2.0
+ 4 x USB3.0
+ 1 x VGA + 1 x HDMI
+ 1X GPIO
+ 2 x Intel I225-V 2.5G LAN
+ MIC IN & SPK out
+ 6* DB9 COM (COM1&COM2 Can set RS232/RS422/RS485)

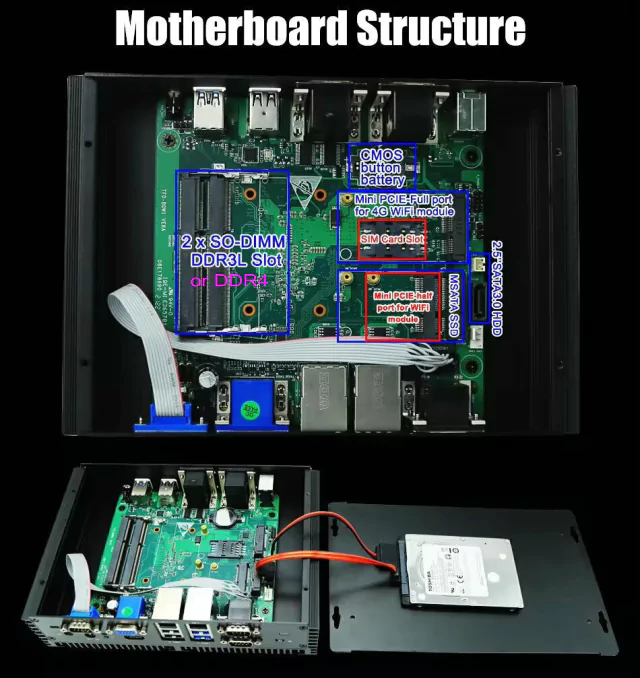

Expansion Interfaces
+ 1* Half Mini Mini PCI-E Slot for WIFI/BT with External Antennas
+ 1* Full Height Mini PCI-E Slot for 3G/4G module With SIM Card S
+ Working Environment
+ Operating Temperature -20/+70C
+ Storage Temperature -10/+85C
+ Relative Humidity 10%~85% (non-condensing)
+ Power 12V/7A Adapter
+ Size & Weight 235*150*52mm 2.5KG
+ Color Fanless Aluminum Box, Black Color
+ Functions Auto Power On, Wake-On-LAN, GPIO. PXE Boot
+ Package Content 1x Mini PC, 1xScrews Bag, 2x WiFi Antennas
